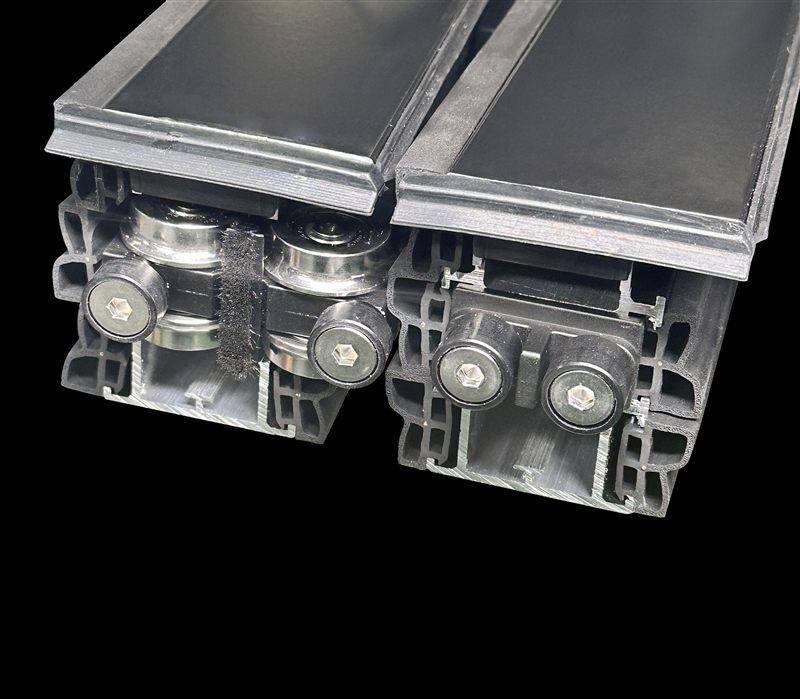

Track & Roller System

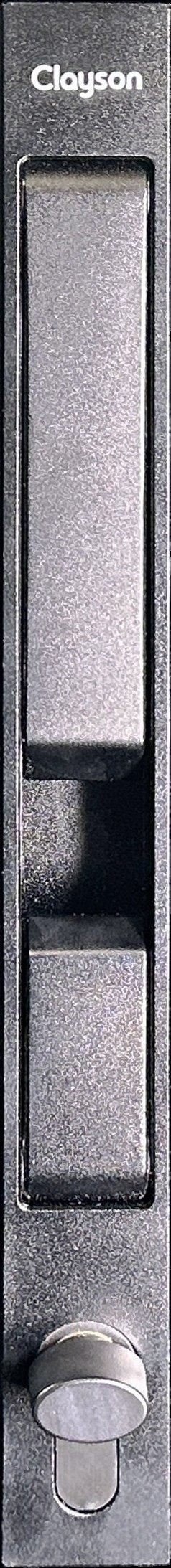

Multi-Point Lock Handle
Standard: AS2047
Design SLS
800Pa
SHGC Range
0.38–0.65
Water Resistance
200Pa
ULS
3000Pa
U Range
2.5–3.5
Sound Insulation
<36dB

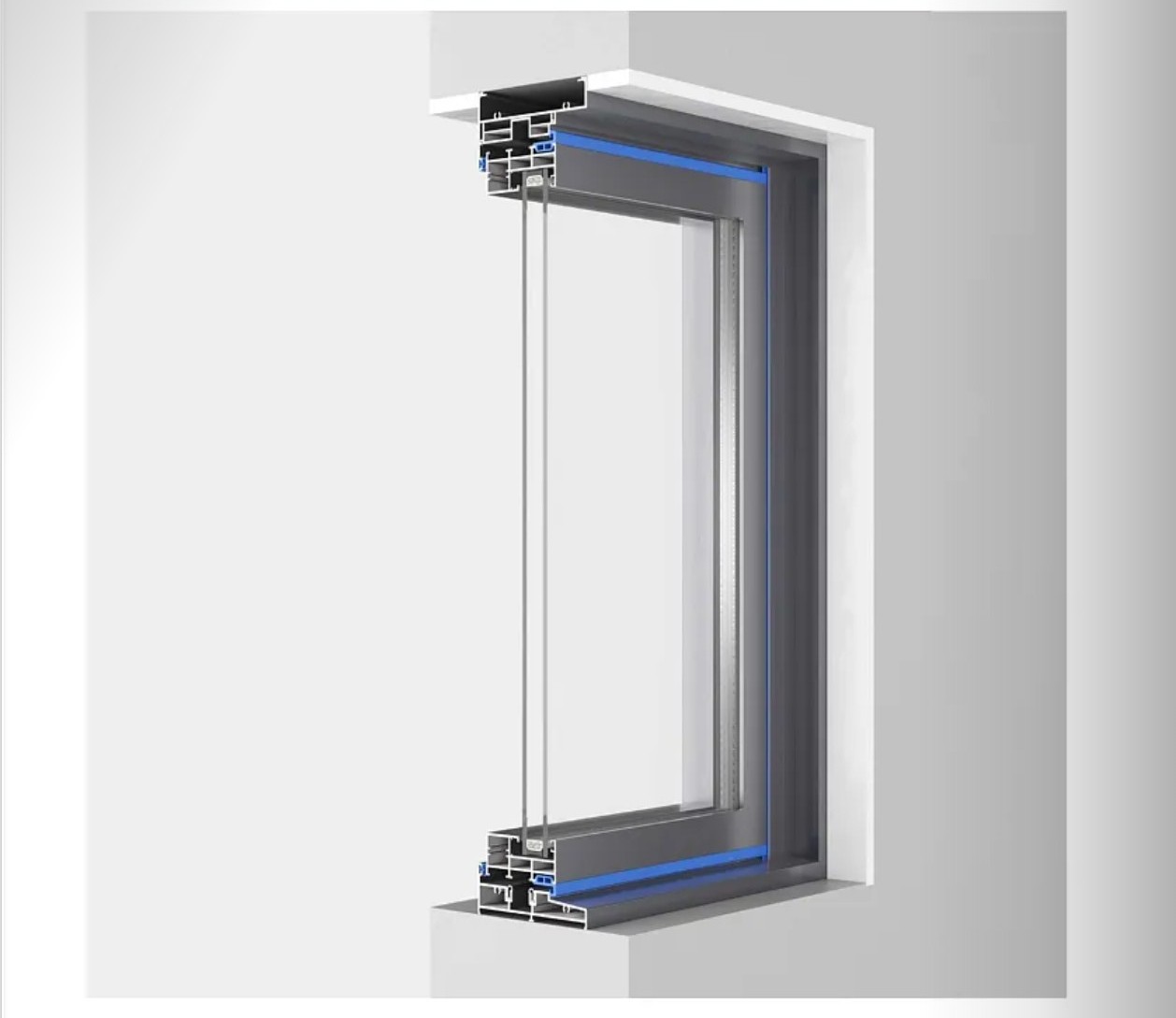

Production Configuration
Extrusion Profile
6063-T5, 1.6mm thickness
Opening Type
Folding
Thermal Break
Non-thermally broken (thermally broken series available on request)
Surface Treatment
Automotive-grade fluorocarbon spray, 15+ year quality guarantee
Regular Colours
Black and white (special colours available on request)
Sealing Strips
EPDM automotive-grade sealing strip
Glass Configuration
5mm + 12mm argon-filled gap + 5mm
Open Fan Size Limit
Height 2200–2700mm · Width 500–1000mm
Maximum Adaptive Weight
100kg
Frame Profile Depth
101mm
Frame Profile Height
36mm
Hardware
China Brand / Doric / Customised
Installation Method
Timber reveal, fin fix, subhead, subsill or L angle — compatible with concrete, brick veneer, and light gauge steel + Hebel panel wall systems
Powder Coating
10–25 year warranty depending on finish (Dulux / Akzo Nobel / Interpon)
