IMLANG 101 Series · 101mm Frame Depth

101 2-Track Sliding Window

Operates smoothly on a horizontal plane, providing an ideal space-saving solution for areas such as balconies and kitchens. Compact operation requires no swing space, ensuring it never encroaches on valuable interior or exterior areas, while expansive glass panels maximise natural light intake.

IMLANG 101 2-Track Sliding Window installed in a brick residence

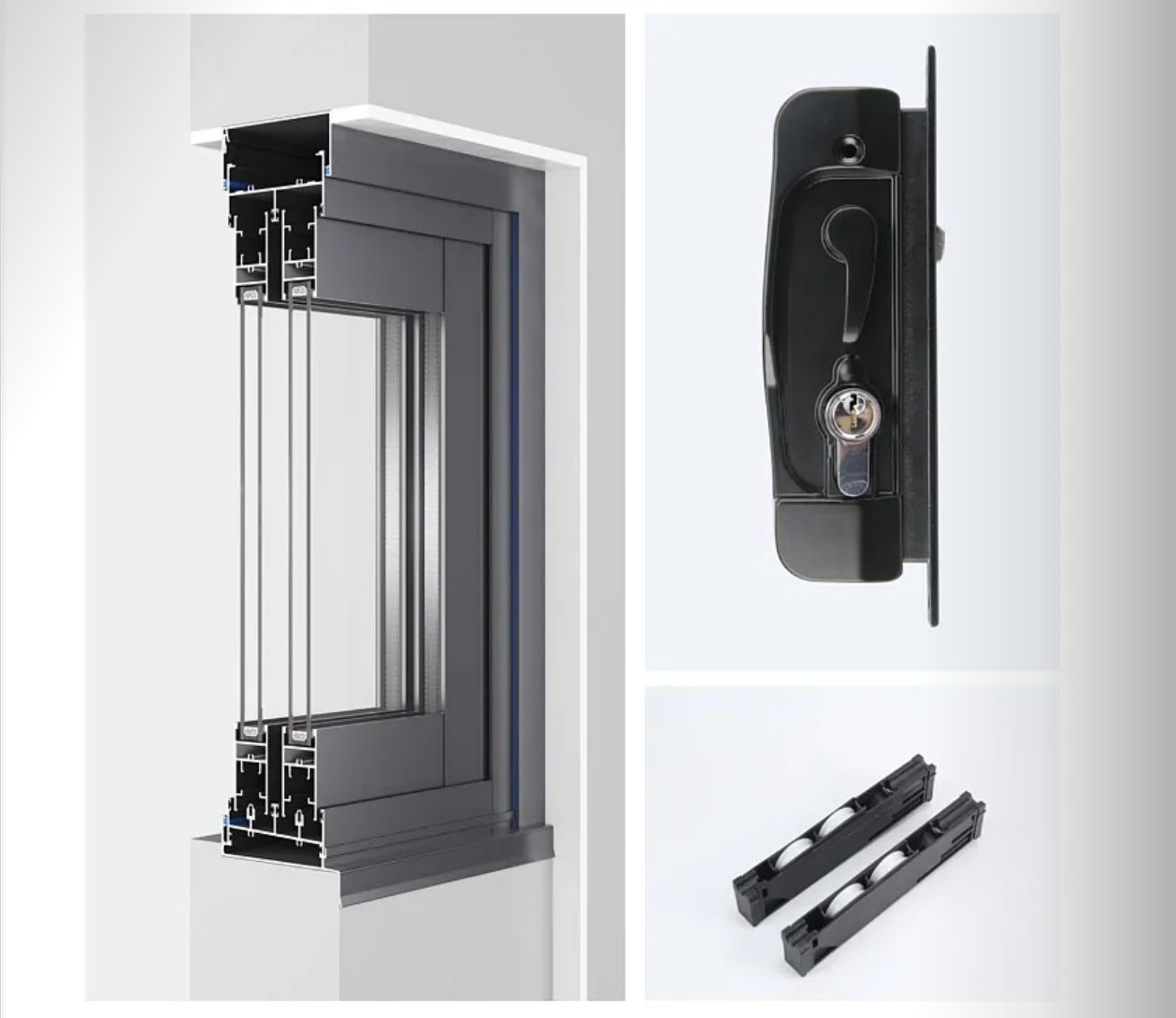

IMLANG 101 2-Track Sliding Window frame cutaway diagram and hardware
IMLANG 101 2-Track Sliding Window installed in a bedroom with mountain and lake views

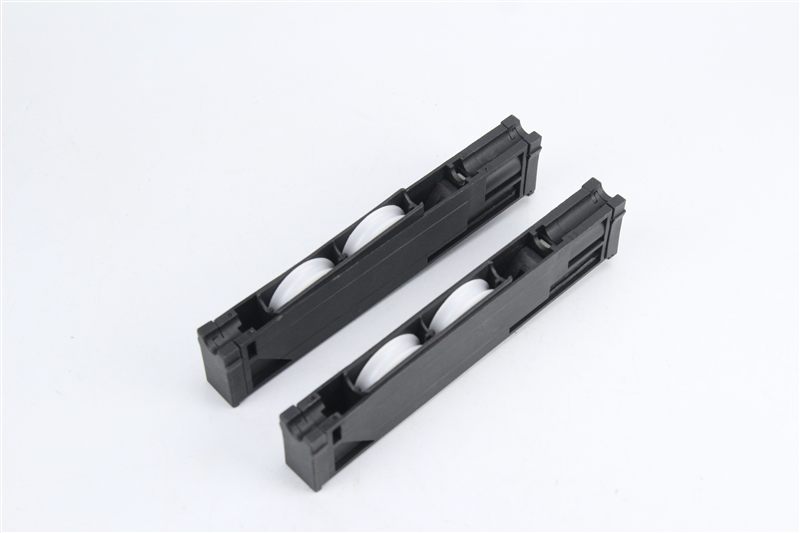

Sliding roller wheel hardware
Roller Wheels

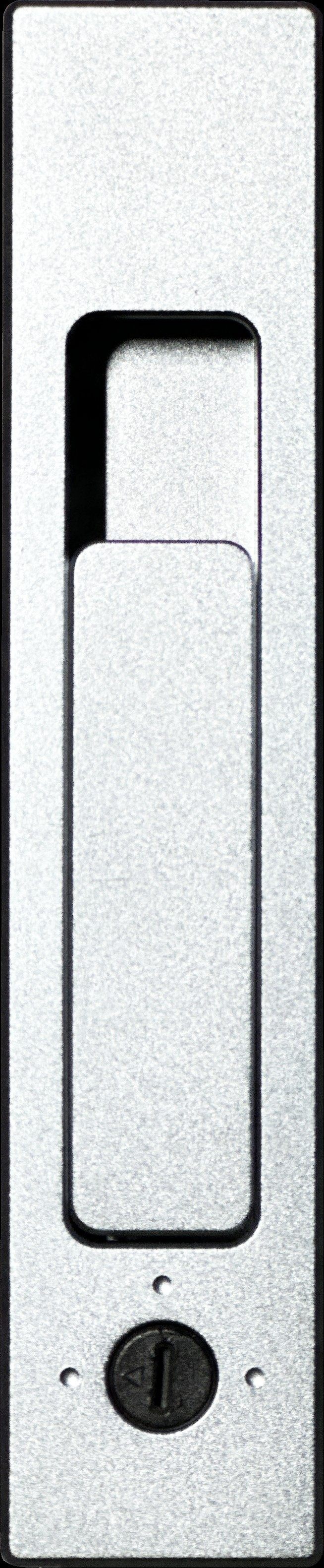

Sash lock mechanism
Sash Lock
Standard: AS2047
Design SLS
1600Pa
SHGC Range
0.38–0.65
Water Resistance
300Pa
ULS
4500Pa
U Range
2.5–3.5
Sound Insulation
<40dB

Production Configuration

Extrusion Profile
6063-T5, 1.6mm thickness
Opening Type
Sliding
Thermal Break
Non-thermally broken (thermally broken series available on request)
Surface Treatment
Automotive-grade fluorocarbon spray, 15+ year quality guarantee
Regular Colours
Black and white (special colours available on request)
Sealing Strips
Wool strip
Glass Configuration
5mm + 12mm argon-filled gap + 5mm
Open Fan Size Limit
Height 600–3100mm · Width 500–1100mm
Maximum Adaptive Weight
120KG
Frame Profile Depth
101mm
Frame Profile Height
50mm
Hardware
China Brand / Doric / Customised
Installation Method
Timber reveal, fin fix, subhead, subsill or L angle — compatible with concrete, brick veneer, and light gauge steel + Hebel panel wall systems
Powder Coating
10–25 year warranty depending on finish (Dulux / Akzo Nobel / Interpon)
