Built to Australian Standards

Engineered for the country you live in.

Australia asks a lot of a window. Bushfire zones, coastal spray, cyclone winds, summers over forty, winters near zero. Every product we ship meets the standard for where it's going — and we hold the test reports to prove it.

Bushfire

BAL-FZ capable across the range.

Every window and door can be specified to Bushfire Attack Level ratings up to and including Flame Zone. Testing to AS 3959 and AS 1530.8.2.

Thermal

U-Range 2.5–3.5 W/m²K, SHGC 0.38–0.65.

Non-thermally broken 101mm and 150mm series as standard, with a thermally broken series available on request. Double glazed with a 12mm argon-filled gap as standard.

Safety

Toughened glass, standard.

Grade A safety glass throughout, laminated where required by AS 1288. Privacy glass technology for bathrooms, ensuites and street-facing frontages.

Compliance

AS 2047. Independently tested.

Wind and water tested to AS 2047 by Intertek and NATA-accredited Azuma Hong Kong. Design SLS to 1200Pa, ULS to 5300Pa, water resistance to 600Pa. Every install documented, every component traceable.

Qualification Certificates

Tested by accredited labs,
not by marketing.

Our qualification file includes AWA–AGGA accreditation for AS 1288 glazing, Intertek performance testing, and Azuma Hong Kong (NATA-accredited) wind and water test reports to AS 2047.

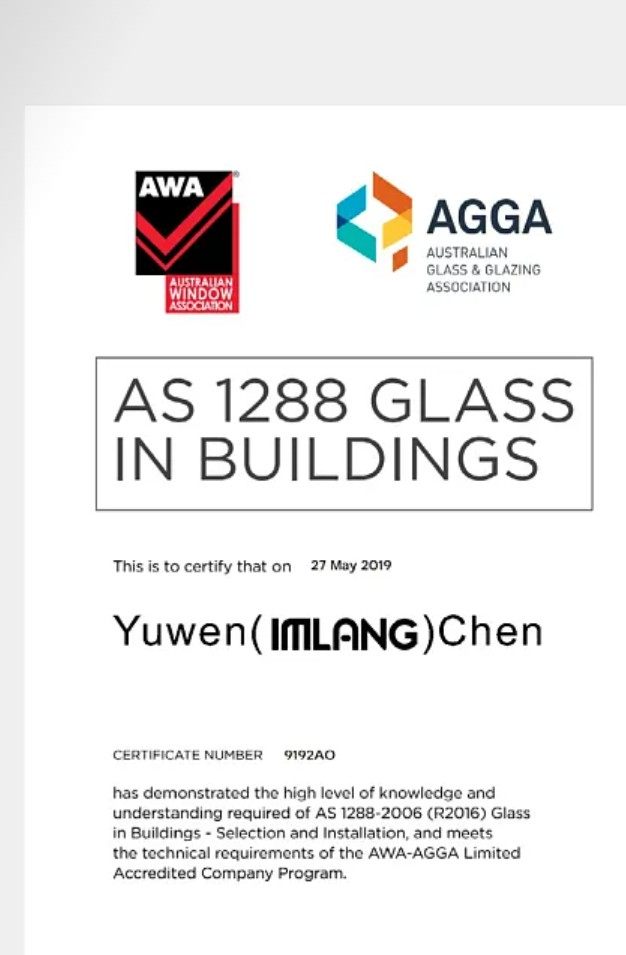

AWA-AGGA AS 1288 Glass in Buildings accreditation certificate
AS 1288-2006 (R2016) · AWA–AGGA Accredited

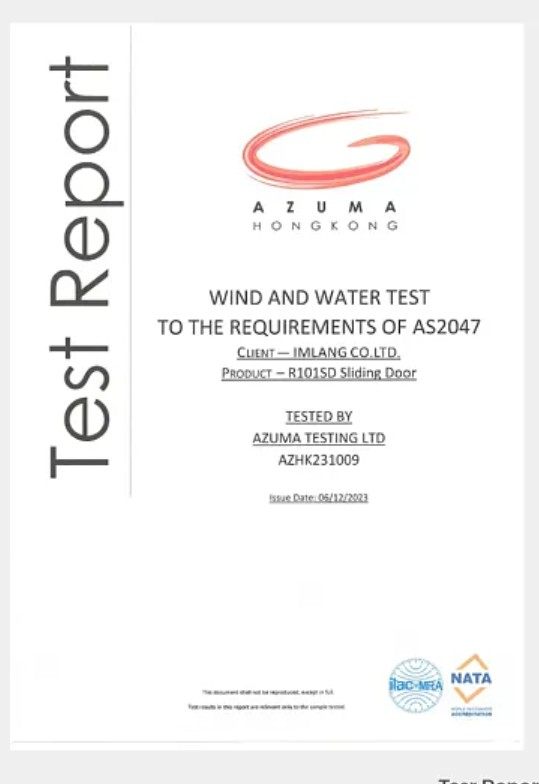

Azuma Hong Kong AS 2047 wind and water test report
AS 2047 Wind & Water · Azuma Testing (NATA)
Test Result Summary — AS/NZS 4420.1
R101SD Sliding Door · AZHK231009
Deflection Test
Positive 600Pa / Negative 600Pa — Pass
Operating Force
180N / 110N — Pass
Air Infiltration
High — Pass
Water Penetration
200Pa — Pass
Ultimate Strength
Positive 2000Pa / Negative 2000Pa — Pass

Tested by Azuma Testing Ltd, Hong Kong — ilac-MRA / NATA accredited. Issue date 06/12/2023. Additional reports held for bifold doors and awning windows; full test documentation available on request.

Glass Selection

The glass does half the work.

Every unit is glazed to suit its climate zone, orientation and acoustic environment — chosen with you at the design stage.

Double Glazed Glass

  • ✓Thermal insulation — a 9mm+ argon-filled gap reduces heat transfer by 40% versus single glazing, meeting Australian energy rating standards.
  • ✓Noise reduction — 35dB+ sound insulation, ideal for urban areas near airports and highways.
  • ✓Condensation control — dew point tolerance below −20°C prevents fogging in coastal climates.

Laminated Glass

  • ✓Safety protection — the PVB interlayer holds glass fragments in place when broken.
  • ✓UV blocking — filters more than 99% of UV radiation, protecting interior furnishings from fading.
  • ✓High performance impact resistance — specified where AS 1288 requires Grade A safety glazing.
Installation Methods

Made for the way Australia builds.

Installation accessories are available for every common Australian wall structure — superior water leakage resistance, effortless installation, certified safety compliance.

Commercial Series

Subhead · Subsill · Subjamb · L Angle

Wall Structures
Concrete structures · Light gauge steel + Hebel panel systems · Double brick construction · Light gauge steel + brick hybrid systems
Ideal For
Commercial buildings (facades, partition walls) · Residential developments (apartments, townhouses, single-family dwellings)
Profiles
101 Subhead / Subsill · 150 Subhead / Subsill · Subsill with blocking plate or flat
House Series

Fin Fix (20/40mm) · Timber Reveal · L Angle

Wall Structures
Timber frame with 100/150mm Hebel panel systems · Brick veneer construction · Light gauge steel with brick infill configurations
Ideal For
Medium-density residential developments (townhouses) · Single-unit dwellings
Key Features
Advanced waterproof protection · Streamlined installation system · Certified safety compliance

Need the full test documentation?

Complete AS 2047 test reports, BAL assessments and glazing certificates are available for your certifier on request.
